Dryer Vent Cleaning & Duct Upgrade in Redwood City

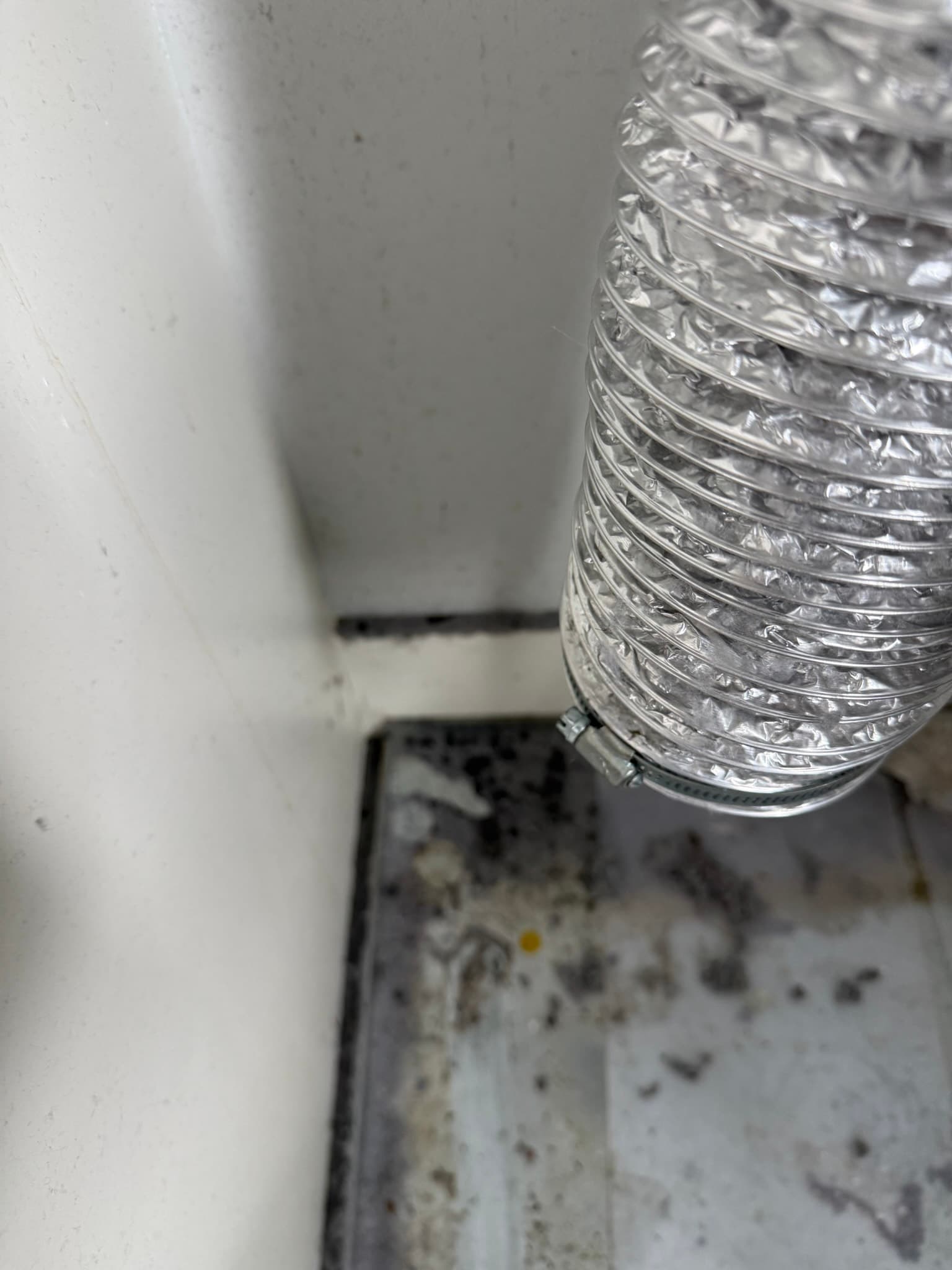

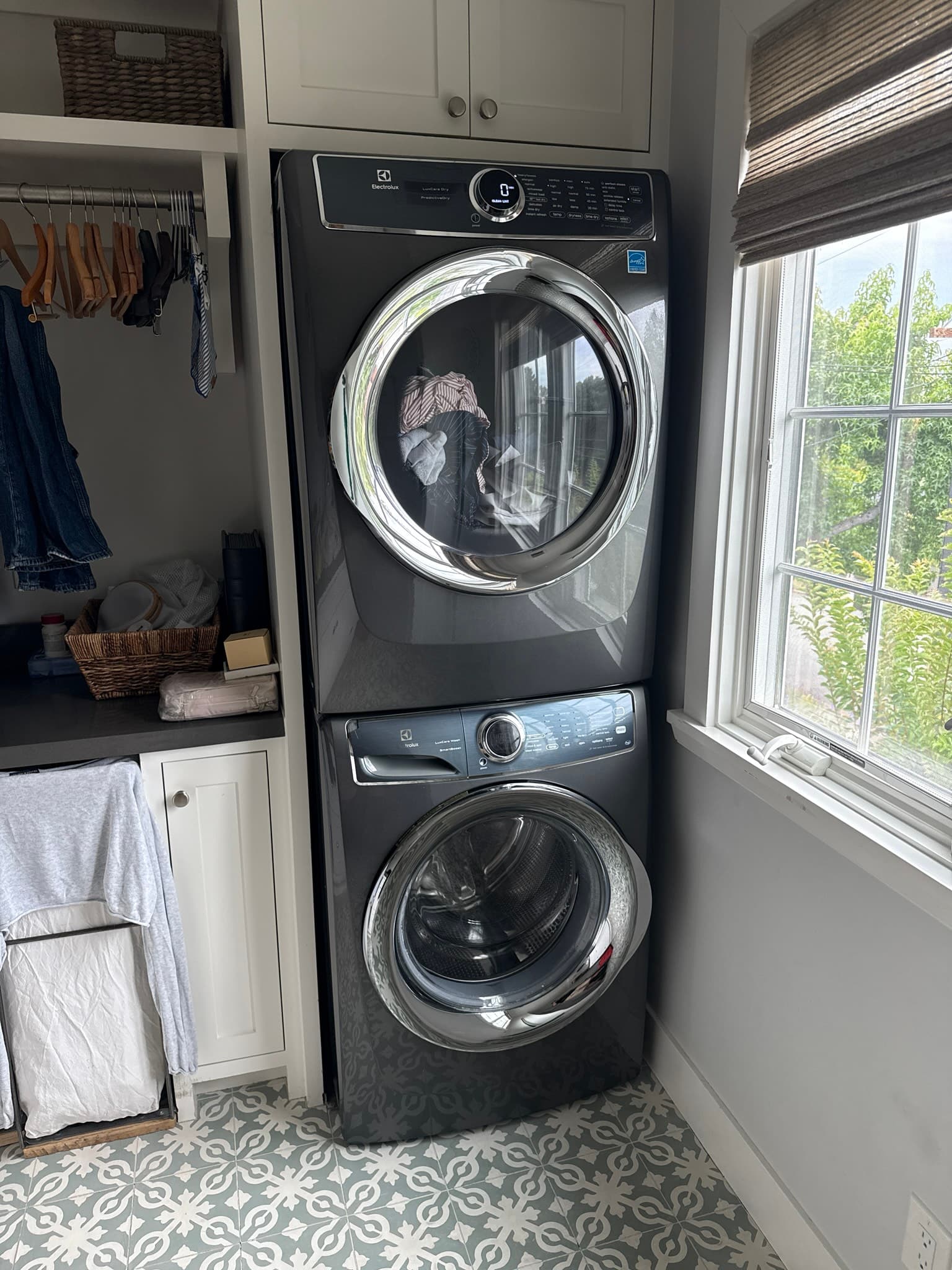

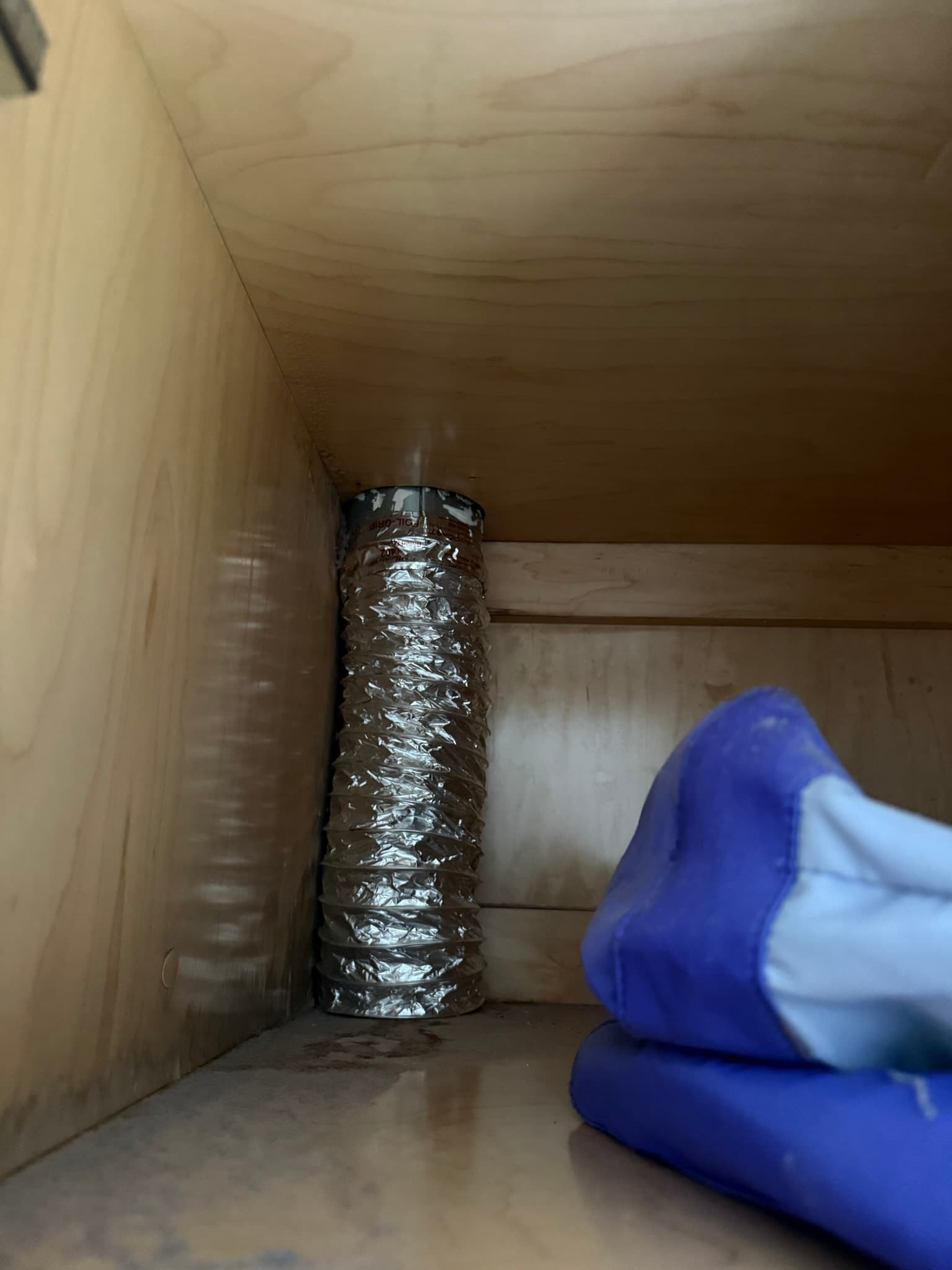

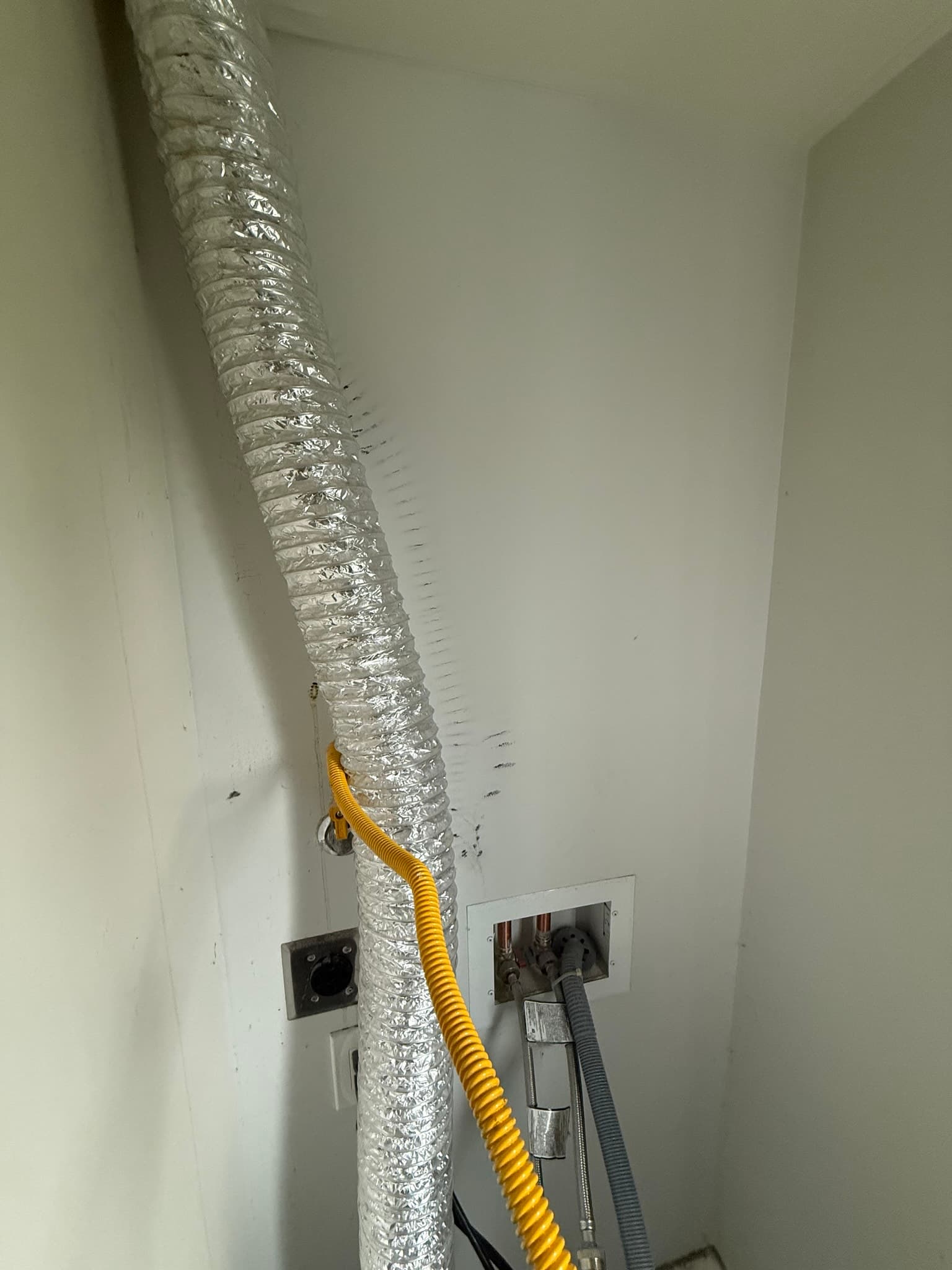

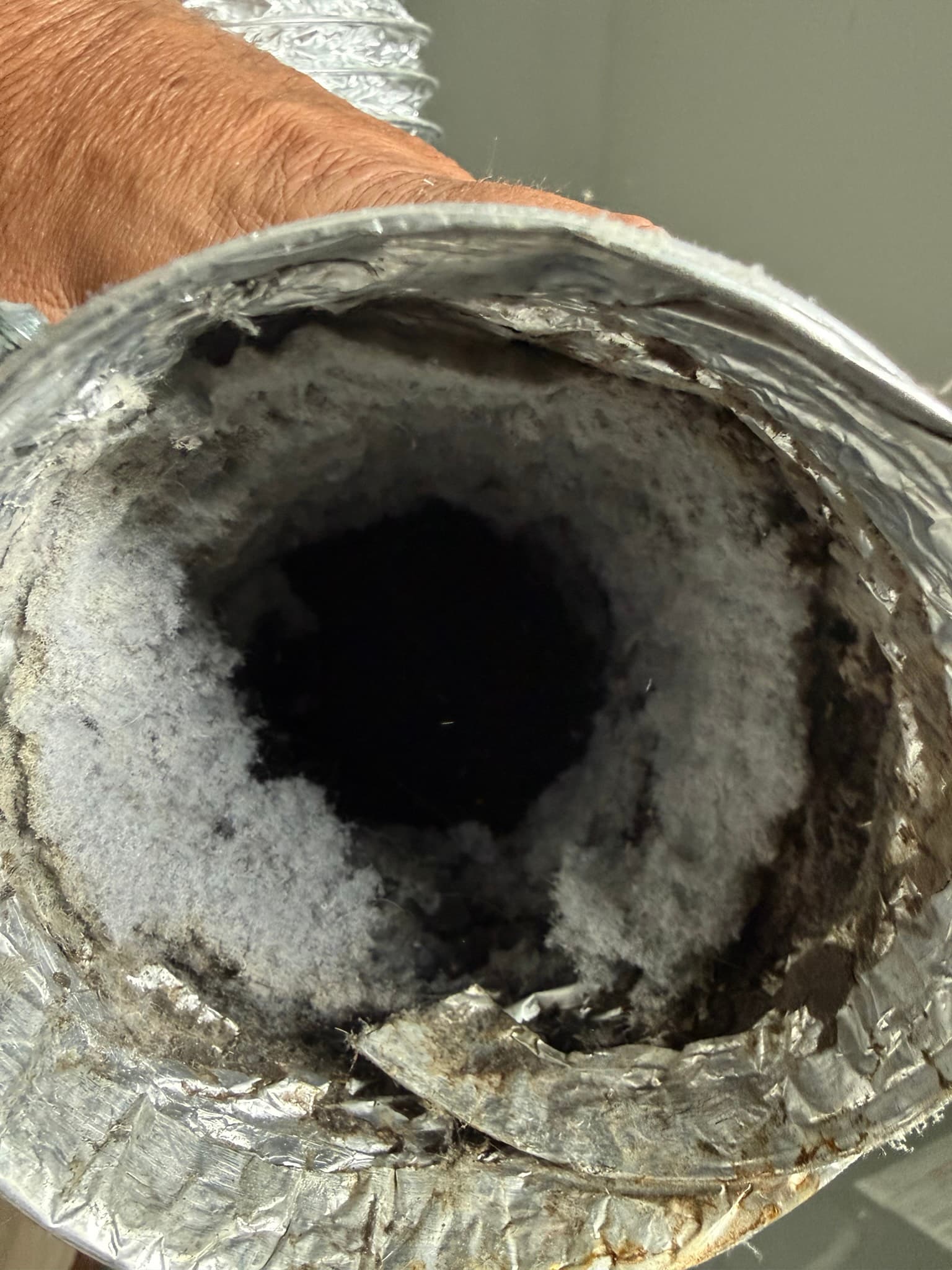

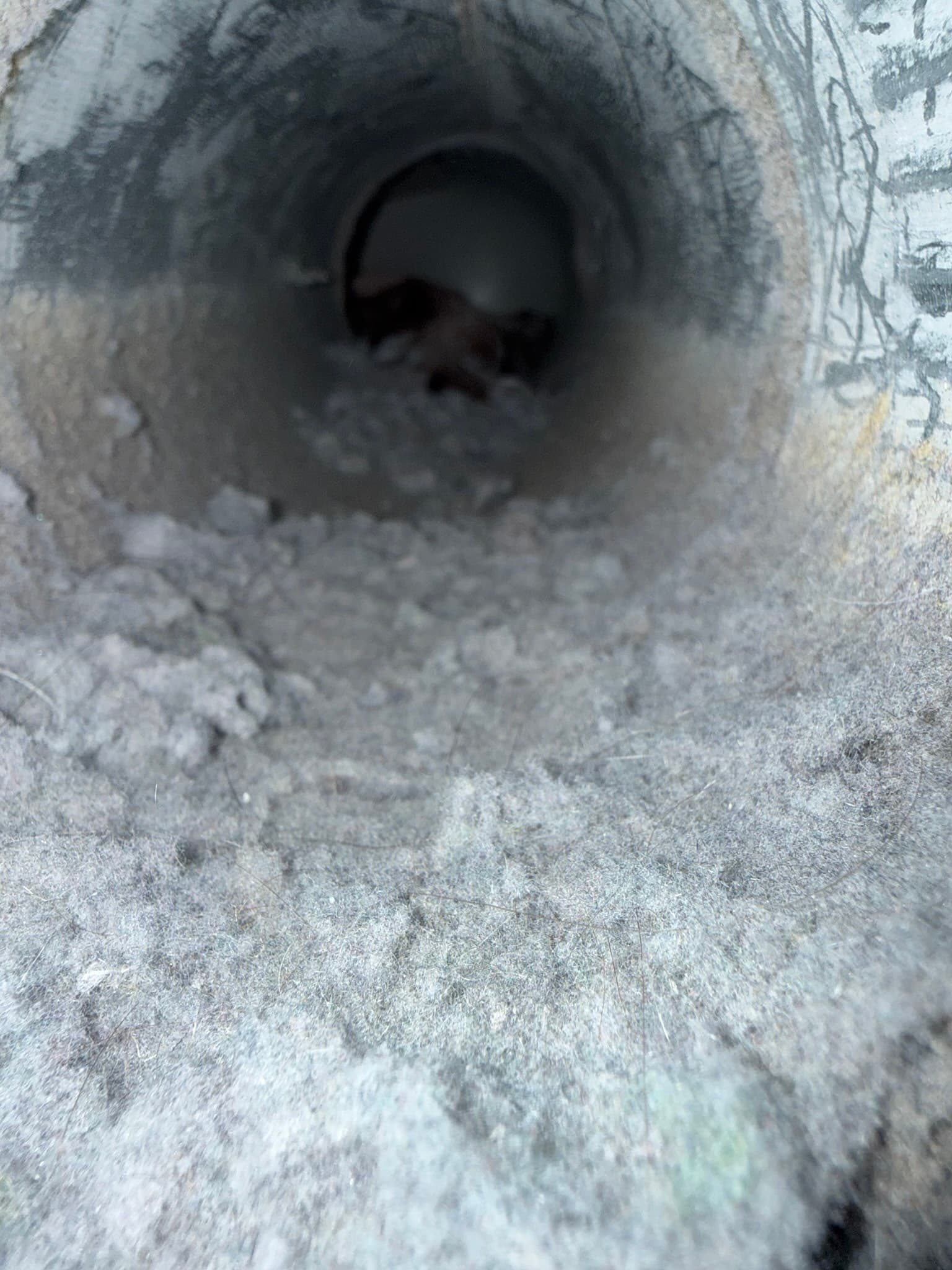

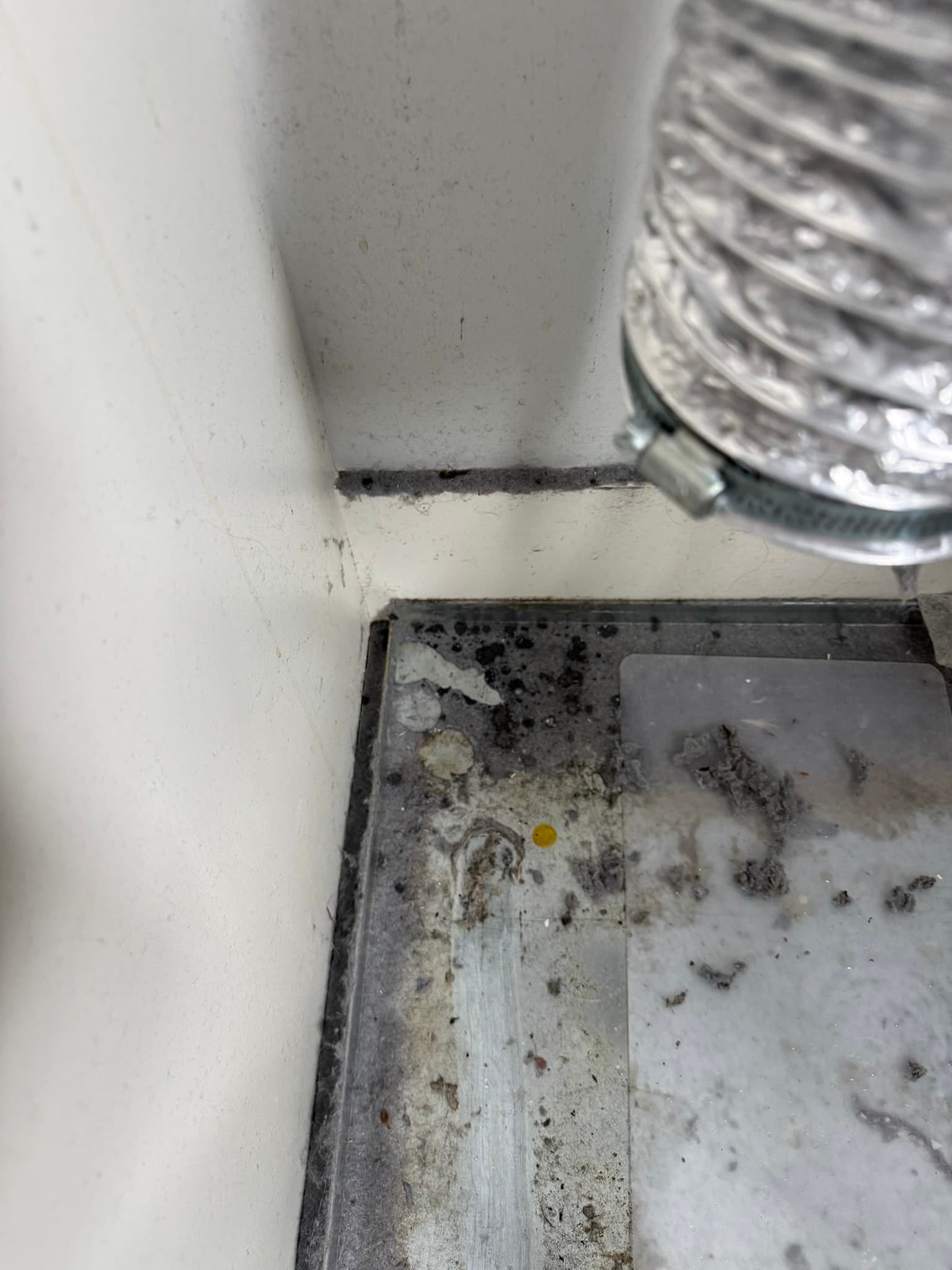

## What We Found During a residential dryer exhaust cleaning and inspection in Redwood City, the technician discovered several urgent safety issues with a stacked Electrolux washer/dryer unit installed in a tight laundry closet. The existing transition duct was a flexible foil type, which is explicitly prohibited under IRC M1502.4.1. That code requires smooth-interior metal duct of no less than 0.0157 inch (No. 28 gauge) thickness. Foil flex duct fails this standard because its ribbed interior surface traps lint at 4 to 8 times the rate of smooth rigid duct and cannot reliably withstand dryer exhaust temperatures that can reach 200 degrees F or higher. ## Blockages Beyond Lint The interior of the duct was clogged with compacted lint that had severely restricted airflow, consistent with greater than 50% occlusion (issue: LINT_BUILDUP_SEVERE_1cdf). The U.S. Fire Administration reports approximately 2,900 home dryer fires each year, with lint accumulation as the leading cause. In addition to the lint, the technician pulled three pairs of underwear and a sock from approximately 4 feet into the exhaust system, and found additional socks and underwear inside the burner tube of the dryer itself. This appears to be a known vulnerability of Electrolux dryers: the oversized lint trap opening allows small garments to pass through and accumulate deep inside the appliance and duct run. The duct also contained standing water, compounding the restriction and indicating that the long, unsupported flex run had sagged and created a low-point trap. ## What Was Done The non-compliant foil flex duct was fully removed. In its place, the technician installed approximately 4 feet of rigid hard pipe terminating with a 22-degree elbow, connected to a magnetic vent (mag vent) fitting at the dryer outlet. The mag vent design is specifically suited to stacked-unit installations in confined closets: it allows the unit to be pulled out for future cleaning or service and then reconnected magnetically without tools or disassembly. The rigid pipe meets IRC M1502.4.1 requirements for smooth-interior metal construction, and the shorter, straighter run significantly reduces the equivalent duct length, improving airflow well above the 300 CFM minimum typically required by dryer manufacturers. ## Outcome With the prohibited duct material replaced, the clothing obstructions removed from both the exhaust run and the burner tube, and the hard-pipe system installed, airflow was restored to a strong, verified level. The new installation is also straightforward to service on future visits, addressing what had clearly become a recurring accumulation problem in this unit. Homeowners with Electrolux stacked dryers should routinely check that no small garments have bypassed the lint trap, as the geometry of these machines makes this an ongoing maintenance consideration.
